The Better Surface Finish Does Not Always Come From Having More Axes
Tool orientation, surface finish, and performance are often treated as a question of machine capability, but the real challenge is maintaining stable cutting conditions throughout the machining process.
While many manufacturers focus on axis count, the ability to maintain stable cutting conditions through effective tool orientation often has a greater influence on the final surface quality.
The quality of the finished surface depends less on the number of available axes and more on how effectively the tool orientation is controlled throughout the machining path.
Manufacturers evaluating robotic machining frequently focus on motion capability while underestimating the importance of tool approach angles, cutting force direction, contact conditions, and process stability. A system with more available motion can still produce poor surface quality if the orientation strategy creates inconsistent cutting conditions.
The decision is therefore not whether 6-axis motion is better than 5-axis motion. The more important question is whether the selected tool orientation strategy supports stable material removal across the entire geometry being machined.
Understanding how tool orientation and surface finish performance change across different machining approaches can help manufacturers avoid costly assumptions during process development.
Why Surface Finish Depends on Tool Orientation
Surface finish is ultimately created by the interaction between the cutting tool and the workpiece. Tool orientation determines how the cutting edge contacts the material, how forces are distributed, and how chips are evacuated during machining.
Even small changes in approach angle can alter the effective cutting conditions. A favorable orientation may maintain stable engagement and consistent cutting forces. A less favorable orientation may increase vibration, deflection, or uneven tool loading.
This becomes especially important when machining free-form surfaces, molds, composite structures, aerospace components, or customized industrial parts where the geometry changes continuously.
As the surface geometry changes, the tool orientation often changes as well. The challenge is maintaining consistent cutting conditions despite those variations.
Achieving consistent tool orientation surface finish results requires maintaining stable cutting conditions as geometry, engagement angle, and cutting forces change throughout the machining process.
How 5-Axis Machining Influences Surface Quality
A 5-axis machining strategy allows the cutting tool to approach the workpiece from multiple angles while maintaining continuous control over tool position and orientation.
This flexibility can improve surface finish by reducing the need for multiple setups and allowing the cutting tool to remain closer to an optimal engagement angle.
In many machining applications, 5-axis motion helps minimize abrupt transitions between toolpaths. Smoother transitions often reduce witness marks, improve consistency, and create more uniform surface characteristics.
However, surface quality is not guaranteed simply because 5-axis motion is available. Poor programming decisions, unstable fixturing, excessive tool overhang, or unsuitable cutting parameters can still generate unacceptable results.
The effectiveness of 5-axis machining depends on how orientation changes are managed throughout the process, rather than the presence of additional motion alone.
What Changes When a Sixth Axis Is Introduced?
In robotic machining applications, a sixth axis typically provides additional freedom for controlling tool orientation. This extra flexibility can be valuable when machining highly complex geometries that require continuous adjustment of the tool angle.
The primary advantage is not necessarily greater accuracy. Instead, the additional axis may allow the process engineer to maintain more favorable cutting conditions throughout the machining path.
For example, the extra degree of freedom can help avoid singular positions, reduce abrupt orientation changes, and improve access to difficult features. In some applications, this creates a smoother cutting process that contributes to improved surface quality.
The additional axis can also create new challenges. More complex motion paths may increase programming requirements, process validation effort, and opportunities for orientation-related errors.
This is one reason why manufacturers often underestimate the programming demands associated with advanced robotic machining projects. Similar considerations apply to broader automation projects discussed in AUGMENTUS SOFTWARE FACILITATES ROBOTIC PROGRAMMING
Force Direction Often Matters More Than Axis Count
When evaluating tool orientation surface finish performance, force direction frequently has a greater impact than the number of controlled axes.
Every machining operation generates forces that act on the tool, spindle, robot, fixture, and workpiece. The direction of those forces changes as the tool orientation changes.
If cutting forces are directed into a mechanically stable configuration, vibration and deflection may remain relatively low. If forces are directed into a less rigid configuration, the same toolpath can produce visible surface defects.
This principle becomes especially important in robotic machining because structural stiffness often varies throughout the robot’s work envelope. A tool orientation strategy that appears acceptable in one position may generate different results elsewhere.
As a result, evaluating force direction is often more valuable than simply comparing the number of available axes.
Many machining studies focus on machine capability, but tool orientation, surface finish, and performance are often determined by how forces are distributed through the cutting process.
In many applications, tool orientation surface finish performance is influenced more by force direction than by the number of available motion axes.
Complex Geometries Increase the Importance of Orientation Control
Simple planar surfaces can often tolerate relatively straightforward tool orientation strategies. Complex geometries rarely provide the same margin for error.
Curved surfaces, deep cavities, sculpted profiles, and continuously changing contours require the machining process to adapt constantly. As geometry complexity increases, maintaining a stable relationship between the cutting tool and the surface becomes more difficult.

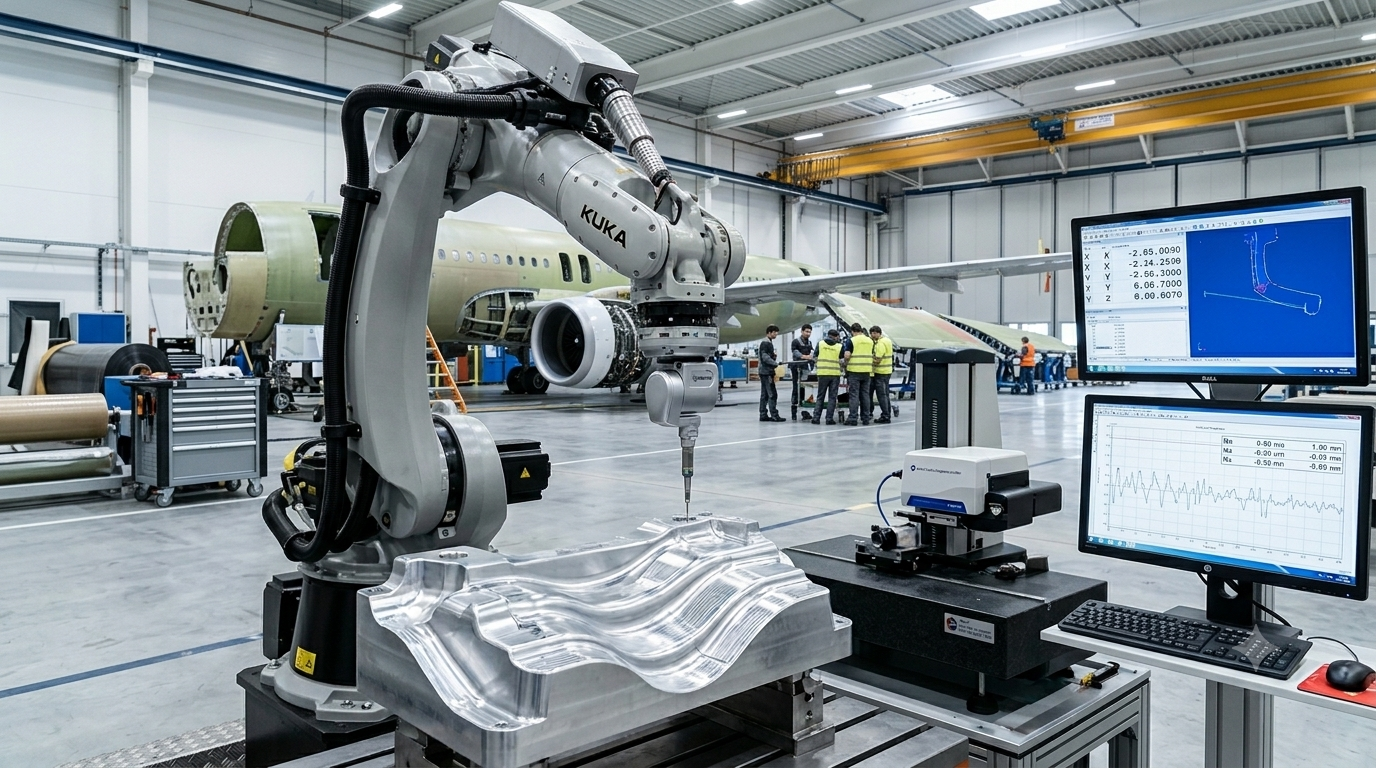

This is why surface finish validation should always be performed across the complete machining path rather than at a few isolated locations.
Manufacturers evaluating robotic machining of custom components should also consider how repeatability affects long-term quality outcomes. Surface finish consistency is closely connected to process stability, calibration, and path execution throughout production.
These considerations align closely with broader repeatability concerns discussed in VALUE OF ROBOT ADOPTION IN MANUFACTURING INDUSTRIES, where process stability is often a prerequisite for successful automation.
When More Orientation Freedom May Not Improve Surface Finish
Additional motion capability creates opportunities, but it does not automatically create better results.
There are situations where a more complex orientation strategy can introduce unnecessary variation into the process. Excessive orientation changes may create inconsistent cutting conditions, increase cycle time, or make optimization more difficult.
In some applications, a simpler and more predictable orientation strategy may outperform a highly dynamic approach.
The objective should not be to use every available degree of freedom. The objective should be to create stable cutting conditions that support consistent material removal and repeatable surface quality.
For this reason, process engineers should evaluate whether additional orientation freedom solves a specific machining challenge rather than assuming it provides universal benefits.
What Should Be Verified Before Comparing 5-Axis and 6-Axis Solutions?
Before deciding between different machining approaches, manufacturers should validate the production conditions that affect surface quality.
For a broader industrial robotics context, the International Federation of Robotics provides industry-wide information on manufacturing automation and robotics adoption. While industry trends do not determine machining performance, they can help organizations understand how robotic technologies are being evaluated across production environments.
The following checklist can help structure the evaluation process.
- Has the desired surface finish requirement been clearly defined?
- Have critical tool orientations been identified?
- Has the force direction been evaluated throughout the machining path?
- Have vibration sources been measured?
- Has fixture rigidity been verified?
- Have all complex geometric features been included in testing?
- Has tool wear been considered during validation?
- Have orientation transitions been optimized?
- Can the process maintain stable cutting conditions across the full work envelope?
- Have programming and commissioning requirements been included in the evaluation?
The goal is not simply to determine whether more axes are available. The goal is to determine whether the chosen tool orientation strategy can consistently achieve the required surface quality under production conditions.
The purpose of validation is to determine whether the selected tool orientation surface finish strategy can meet production requirements consistently over time.
The objective of validation is to confirm that the selected tool orientation surface finish strategy can deliver consistent results throughout production.
FAQ
Does 6-axis machining always produce a better surface finish than 5-axis machining?
No. Surface finish quality depends on tool orientation strategy, cutting conditions, rigidity, programming, and process stability. Additional axes provide more flexibility but do not automatically improve results.
Why is tool orientation important for surface finish?
Tool orientation affects cutting force direction, chip evacuation, tool engagement, and vibration behavior. These factors directly influence the final surface quality.
Can poor tool orientation create surface defects?
Yes. Unfavorable tool angles can increase vibration, tool deflection, uneven cutting forces, and visible surface imperfections even when the machine follows the programmed path accurately.
What types of parts benefit most from advanced orientation control?
Complex geometries such as molds, aerospace structures, composite components, sculpted surfaces, and custom industrial parts often benefit from greater control over tool orientation.
Is surface finish validation necessary during process development?
Yes. Validation helps determine whether the chosen tool orientation surface finish strategy remains effective under realistic production conditions rather than only during initial demonstrations.
What is the biggest mistake when comparing 5-axis and 6-axis machining?
Many evaluations focus on motion capability alone. In practice, the more important question is whether the orientation strategy creates stable and repeatable cutting conditions.
