How Spindle Runout Affects Surface Finish in Robotic Milling

A finishing problem in a robotic milling cell is not always caused by robot accuracy, toolpath programming, or cutting parameters. If the cutting tool does not rotate concentrically around the intended spindle axis, each cutting edge can contact the workpiece differently. The result may be uneven cutting loads, visible surface marks, inconsistent dimensions, or accelerated wear on one part of the cutter.

Spindle runout in robotic milling therefore needs to be considered whenever surface quality changes unexpectedly or remains inconsistent despite adjustments to feeds, speeds, toolpaths, and robot posture. Runout describes radial deviation of the rotating tool or spindle assembly from its intended rotational axis. It can originate in the spindle, tool holder, collet, cutting tool, contamination, damage, or assembly condition.

The practical objective is not to assume that every surface defect comes from runout. Instead, engineers should measure the rotating assembly, inspect its interfaces, and compare the findings with the machining symptoms. This helps separate spindle-related problems from robot deflection, vibration, fixture movement, tool wear, or unsuitable cutting conditions.

What spindle runout means in a robotic milling system

Radial deviation at the rotating tool

Runout becomes visible when a point on the rotating assembly does not remain at a constant radius from its intended axis. At the cutting tool, this means one flute may extend slightly farther from the rotational center than another. That difference changes how the cutting load is distributed between the edges.

The measured condition is influenced by the entire stack between the spindle and the cutting edge. A spindle interface can be in acceptable condition while contamination, a damaged holder, an incorrectly seated collet, or the tool itself introduces additional deviation farther from the spindle nose.

Why measurement location matters

A measurement close to the spindle interface and a measurement near the cutting end do not necessarily describe the same condition. Tool length, holder condition, interface cleanliness, and cutter geometry can influence the reading. For troubleshooting, the measurement location should therefore be documented so that repeated checks can be compared under similar conditions.

How spindle runout in robotic milling affects surface finish

When cutter edges do not follow the same rotational path, material removal becomes uneven. One edge may remove a greater share of the material while another contributes less. The resulting cutting-force variation can leave recurring marks that follow the rotation and feed of the tool.

On a finishing pass, these differences can become easier to see because the remaining stock is small and the surface itself is the final output of the operation. Runout can contribute to inconsistent scallop patterns, local roughness, periodic lines, and different surface appearance between neighboring toolpaths.

The effect depends on the complete process. Cutter type, number of flutes, tool engagement, material, spindle speed, feed, tool extension, robot configuration, and structural stiffness all influence whether a small rotational error becomes visible on the finished component.

Why robotic milling can make runout symptoms harder to diagnose

Robot stiffness changes through the work envelope.

An articulated robot does not have identical structural stiffness in every posture. As joint configuration and cutting-force direction change, the response of the mechanical system can also change. A rotating-tool problem may therefore appear more severe in one area of the workpiece than another even when the spindle assembly itself has not changed.

This is one reason surface defects should not automatically be attributed to spindle runout. Robot posture, tool orientation, and cutting-force direction must be considered at the same time, especially when a defect occurs only in specific regions of a large part.

Runout and vibration can interact

Unequal flute loading creates a repeating excitation in the cutting process. If that excitation interacts with compliance in the tool, spindle, robot, fixture, or workpiece, the observed problem may include both runout-related cutting differences and vibration. Correcting only the programmed feed rate may not remove the original mechanical cause.

Common sources of spindle and tool runout

The problem may not originate inside the spindle

A useful troubleshooting sequence begins with the complete rotating assembly rather than immediately concluding that the spindle bearings are damaged. Dirt or chips on mating surfaces can prevent correct seating. Collets and holders can wear or become damaged. A cutter may also be bent or incorrectly clamped.

The relationship between tool holders, concentricity and machining stability is examined further in this guide to tool holders for high-speed robotic milling. The distinction matters because replacing or repairing a spindle without first isolating the actual source can leave the original problem unresolved.

Assembly procedure also matters. Components should be installed according to the spindle, holder and tooling manufacturers’ instructions. Interface surfaces should be inspected before assembly, and questionable components should not be treated as acceptable simply because they can still be mounted.

How spindle runout should be measured

Measure systematically rather than relying on surface appearance.

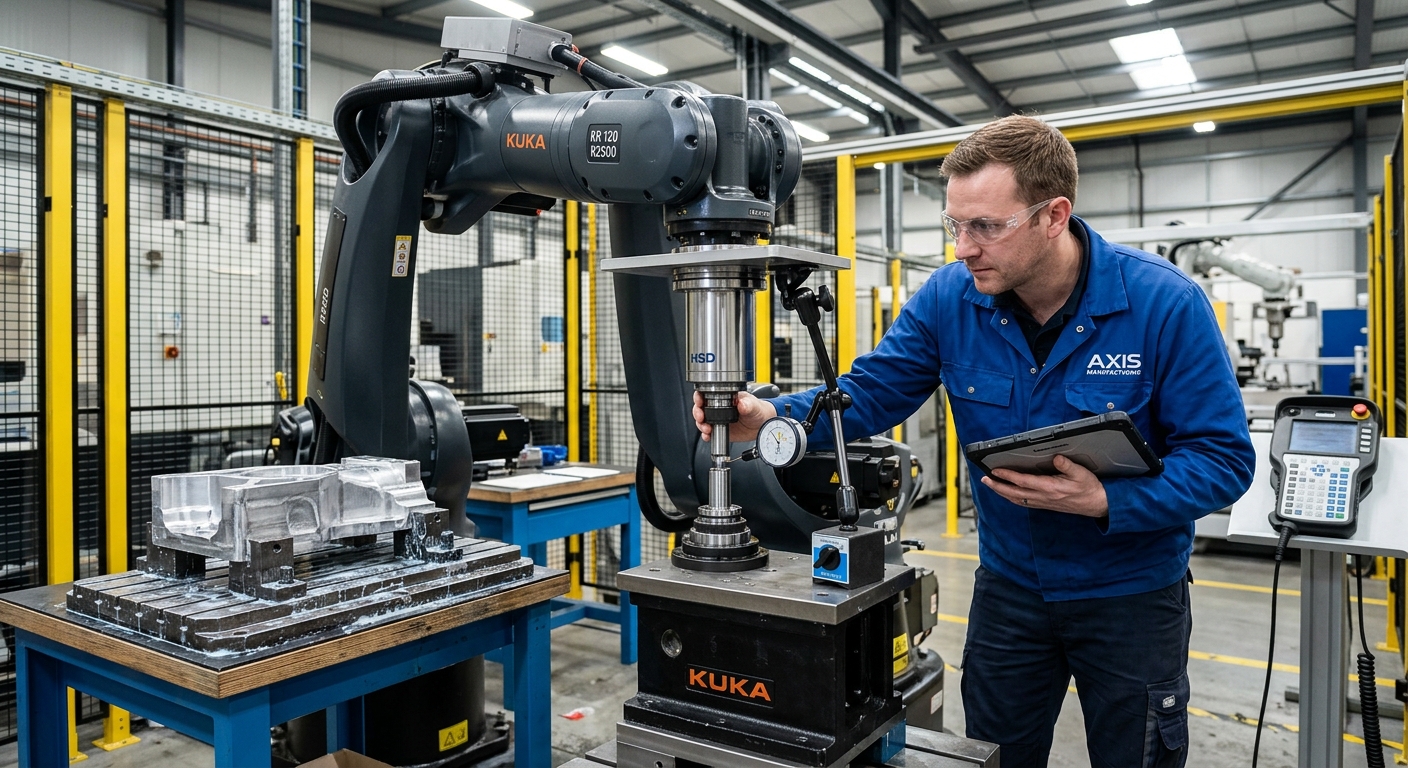

An indicator can be used to observe radial variation while the spindle or test surface is rotated according to an appropriate inspection procedure. The exact setup depends on the spindle interface, holder system, available test equipment and manufacturer instructions. Measurements should be taken only under conditions suitable for the equipment involved.

Useful troubleshooting compares measurements at different stages of the rotating stack. Checking an appropriate spindle reference surface, then the installed holder or test tool, can help identify where deviation increases. Measurements taken at different distances from the interface should not be treated as directly equivalent unless the test setup is controlled.

ISO publishes test methods concerning geometric accuracy and error motion of machine-tool axes of rotation. Engineers requiring formal machine-tool test methodology can consult ISO 230-7:2015 for geometric accuracy of axes of rotation, together with the standards and manufacturer procedures applicable to their specific equipment.

Eight checks when troubleshooting poor surface finish

A surface-quality investigation should move from simple physical checks toward more complex process causes. The following eight items provide a practical sequence for evaluating whether runout is contributing to the problem.

1. Clean the spindle and holder interfaces: remove contamination using the maintenance procedure approved for the spindle and tooling system before taking comparative measurements.
2. Inspect the cutting tool: check for visible damage, uneven wear, contamination and any condition that could prevent correct seating in the holder.
3. Inspect the holder or collet: look for damaged contact surfaces, wear or other defects that could prevent concentric clamping.
4. Measure the assembly consistently: record the measurement location and setup so later readings can be compared under equivalent conditions.
5. Check more than one tool assembly: comparison can help determine whether the problem follows one cutter or holder rather than the spindle itself.
6. Review tool extension: excessive stick-out can increase deflection and make an existing rotational or vibration problem more visible during cutting.
7. Compare surface defects with robot posture: determine whether the marks remain similar throughout the work envelope or become worse in less rigid configurations.
8. Perform a controlled finishing test: after mechanical checks, use a representative workpiece and documented cutting conditions to confirm whether the corrective action changed the surface result.

How to distinguish runout from other surface-finish problems

Runout is only one possible source of poor finish. Chatter, worn cutting edges, excessive tool extension, weak fixturing, workpiece deformation, incorrect chip load, unsuitable tool orientation, thermal effects, and robot deflection can create symptoms that overlap visually.

A defect that changes strongly with robot posture may indicate a structural or cutting-force issue rather than a fixed error in the rotating assembly. A defect that follows a particular tool or holder after it is moved between otherwise comparable setups points toward a different troubleshooting path.

For this reason, changing several variables simultaneously is usually poor diagnostic practice. If the cutter, feed, spindle speed, holder and toolpath are all changed together, an improved surface does not reveal which change corrected the problem. Controlled comparisons provide more useful evidence.

When should runout become part of process control?

Runout checks are particularly useful before demanding finishing operations, after a collision or tooling incident, when a holder or cutting tool is replaced, or when surface quality changes without an obvious programming cause. The appropriate inspection interval depends on the spindle, tooling system, process requirements and maintenance recommendations.

It is also useful to keep measurement records when repeatable surface quality is required. A historical reading can help distinguish a gradual change from a condition that appeared immediately after tooling, maintenance, or process modifications.
